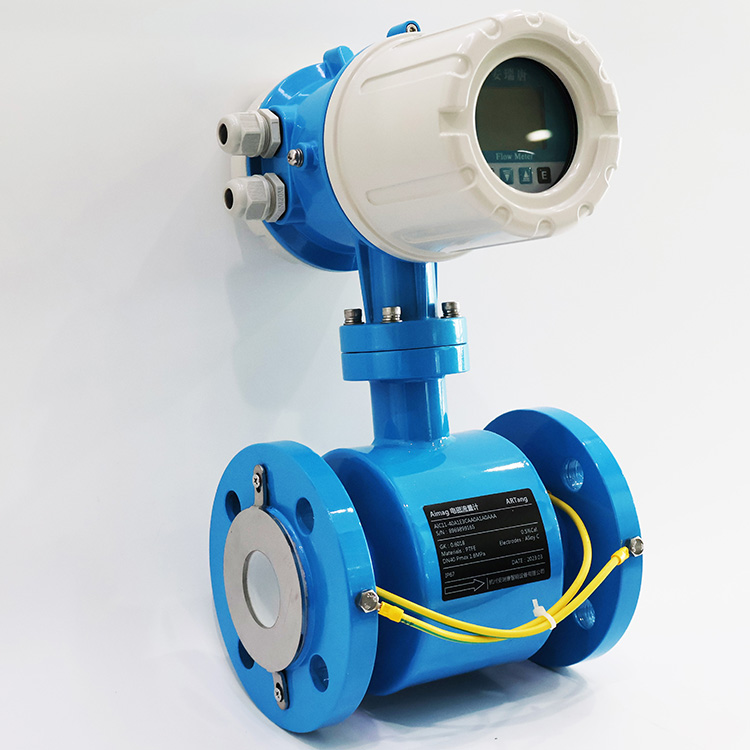

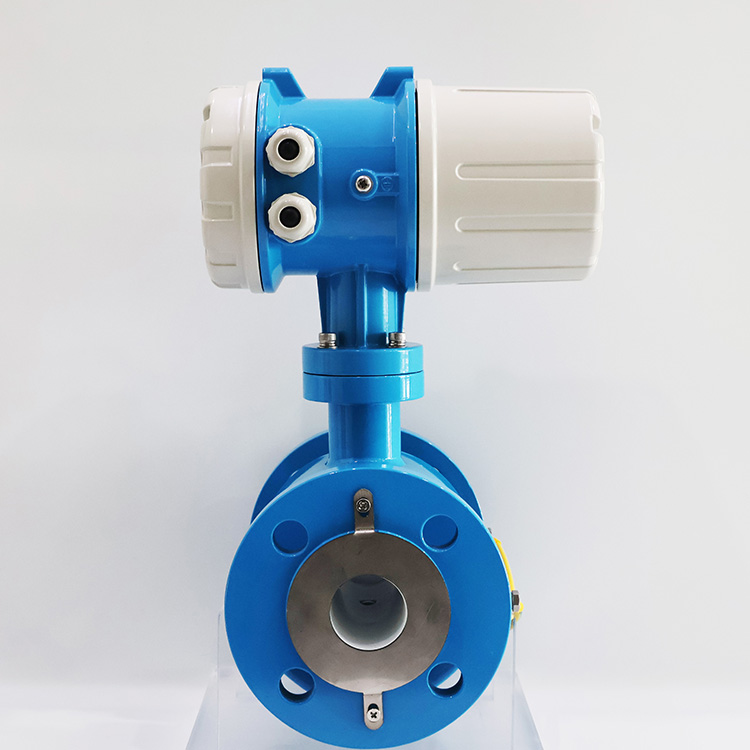

Electromagnetic flow meter has the advantage of very small pressure loss, measurable flow range. Applicable to a wide range of industrial pipe diameter, up to (DN6-DN3000mm), high accuracy±0.2% or ±0.5%, can measure the conductivity ≥ 5μs/cm of acid, alkali, salt solutions, water, sewage, corrosive liquids and slurry, slurry, pulp, pulp and other fluid flow. But it can not measure the flow of gas, steam and pure water.
electromagnetic flowmeter are divided into two structure types: integrative type and separated type. It can be used in specified explosion-proof places. Sensor has electrodes (such as 316L, HC/HB, Ti, Da, Pt) of different materials and lining materials, such as (PFA,F46,Neoprene,PTFE, FEP) of different materials to be chosen.
Product Parameters Of Electromagnetic Flow Meter
The above options are different diameters for electromagnetic flow meters. Specific parameter as follows:
1.【LCD】 display
2.【24VDC 】power supply.
3.【 National standard Flange】connection
4.【Pulse, 4-20mA, RS485 】signal output.
5.【PTFE Lining】
6.【316L Electrode】
7.【Carbon steel material】
Note: other parameters can be customized, if you need please contact us!
【12VDC / 220VAC power supply】
【thread clamp connection 】
【other lining materials, such as PFA,F46,Neoprene,PTFE, FEP】
【other electrode materials,such as 316L, HC/HB, Ti, Da, Pt】
【other materials, such as SS304, SS316, etc,】

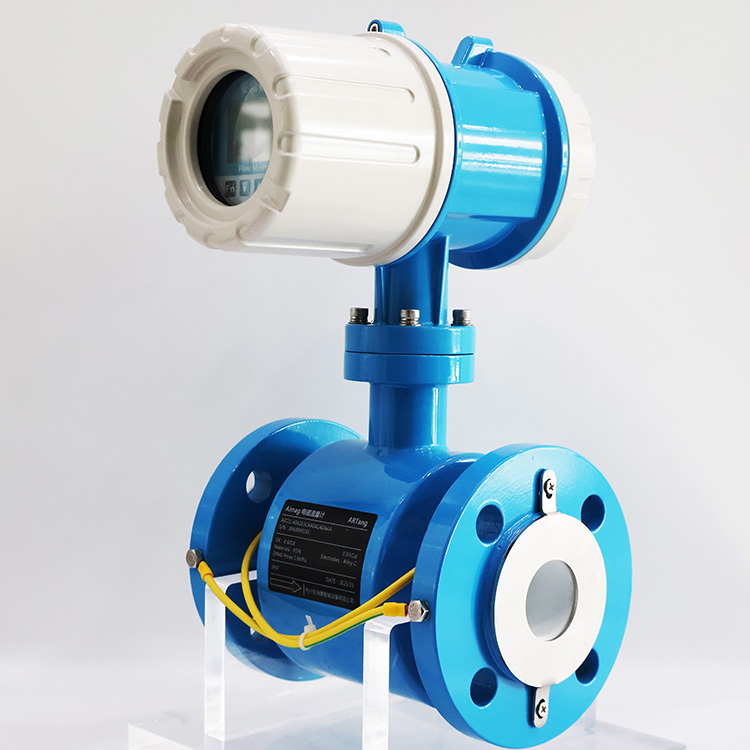

Sewage Electromagnetic Flowmeter
Wastewater Magnetic Flow Meter
Caliber selection: according to the pipe caliber, pipe pressure, sewage flow rate, etc. Select the appropriate caliber. ARTang electromagnetic flowmeter Nominal diameter (DN6-DN3000mm)
Lining and electrode material selection: should be based on the measurement of corrosive substances, abrasive and other characteristics of the choice of lining and electrode material.
Protection class: according to the actual situation of the installation location to choose the appropriate level of protection. protection class IP67/ IP68 (optional)
Measurement accuracy and range: according to the process requirements of sewage treatment to determine the required measurement accuracy and range. the lowest flow speed we can measure is 0.1m/s, and at this flow speed we can guarantee a measurement accuracy of 0.5%.
The output signal and interface: electromagnetic flowmeter output signal and interface should be matched with the monitoring system of the sewage plant, control system. (4-20mA /RS485/pulse)
Cost considerations: in the selection process, but also need to consider the price of equipment, service life, maintenance costs and other factors. Under the premise of ensuring that the process requirements are met, the choice of cost-effective electromagnetic flowmeter.
our company sold products within one year of quality problems (non-man-made), responsible for free maintenance.
Warranty period, such as my company's products have any quality problems, my company is responsible for free repair or replacement.
Warranty period, such as the user improper use, resulting in product damage, our company is responsible for maintenance, charging the cost of damaged parts.
Please contact us for other size electromagnetic flow meter, if you need. Thank you for your great support on us!
